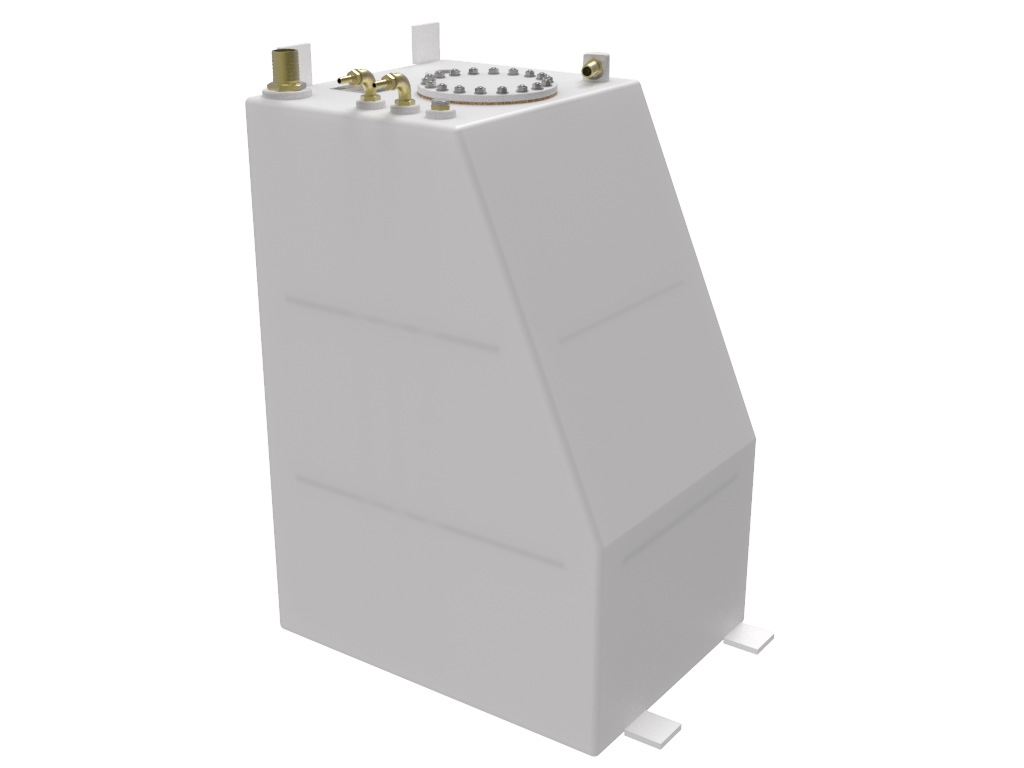

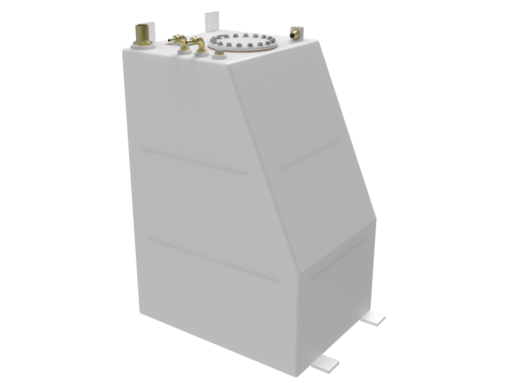

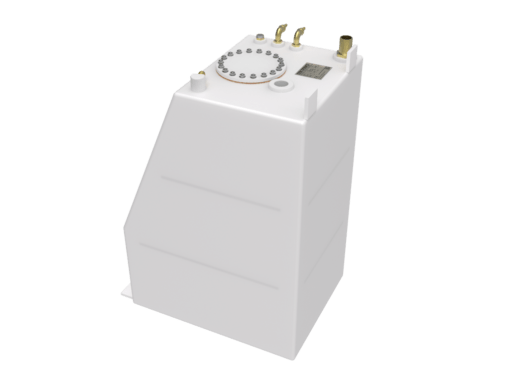

Moody 36 Diesel Tank

Moody 36 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 660mm
Width: 305mm
Height: 533mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1 1/4″ BSP – 32mm Socket (provision for level indicator)
1 x 3/4″ BSP – 19mm Fixed Brass Elbow
1 x 3/8″ BSP Plug
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
3 x Copper Dip Pipe
1 x 200mm Nuts and Bolts Hatch
4 x Undrilled flange

Capacity: 188 litres

Position in Boat: Centre Under Stairs

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
