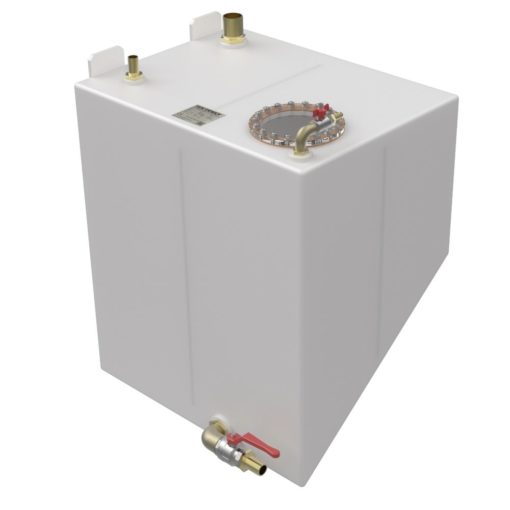

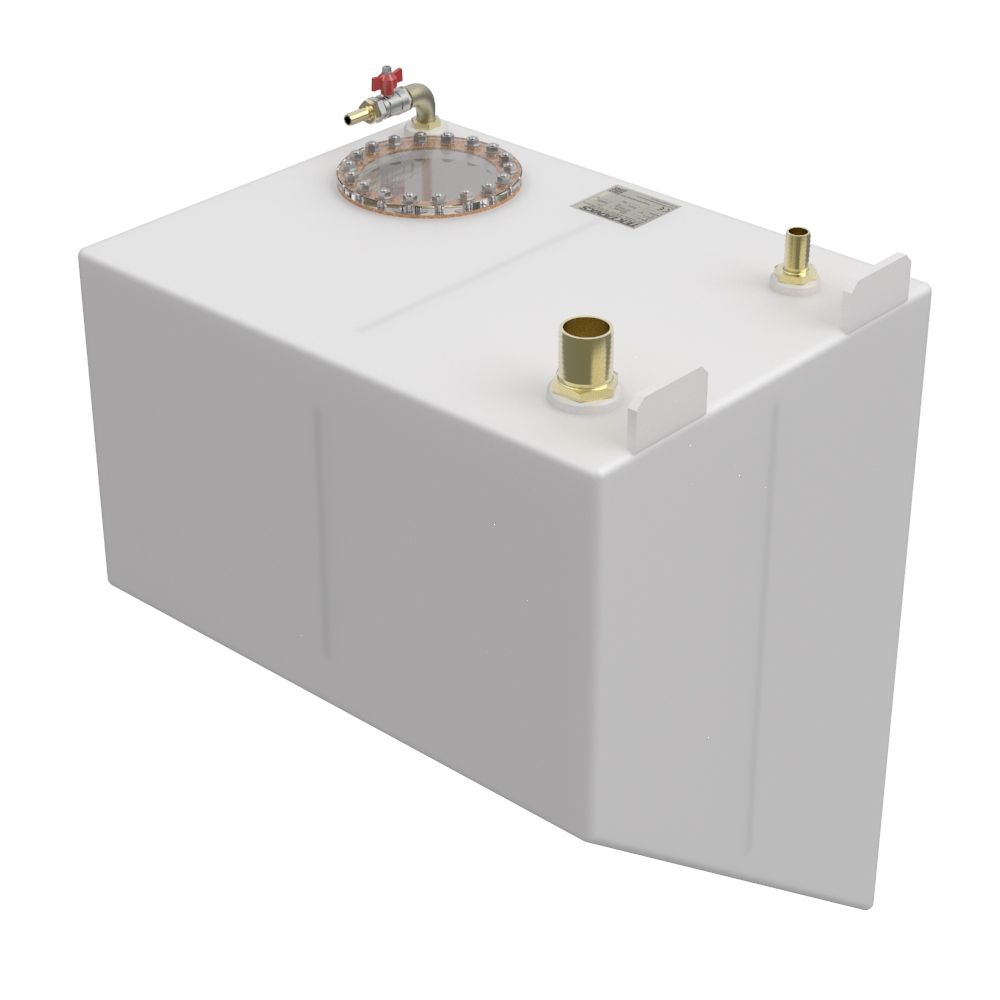

Nauticat 43 Diesel Tank

Nauticat 43 Diesel Tank made from 10mm Natural High Density Polyethylene.

Overall dimensions without fittings:

Length: 700mm
Width: 520mm
Height: 800mm

Fittings:

1 x 1″ BSP – 25mm Brass Elbow Hosetail Valved
1 x 1″ BSP – 25mm Brass Straight Hosetail
1 x 1 1/2″ BSP – 13mm Brass Elbow Hosetail Valved c/w Brass Dip Pipe
1 x 1 1/4″ BSP – 32mm Brass Elbow Hosetail c/w Valve
1 x 1 3/4″ BSP – 45mm Brass Straight Hosetail
1 x 200mm Clear Acrylic Inspection Hatch

Capacity: 192 litres

Position in boat: Starboard Forward

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
