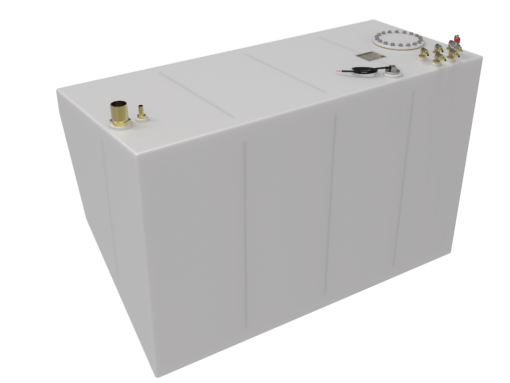

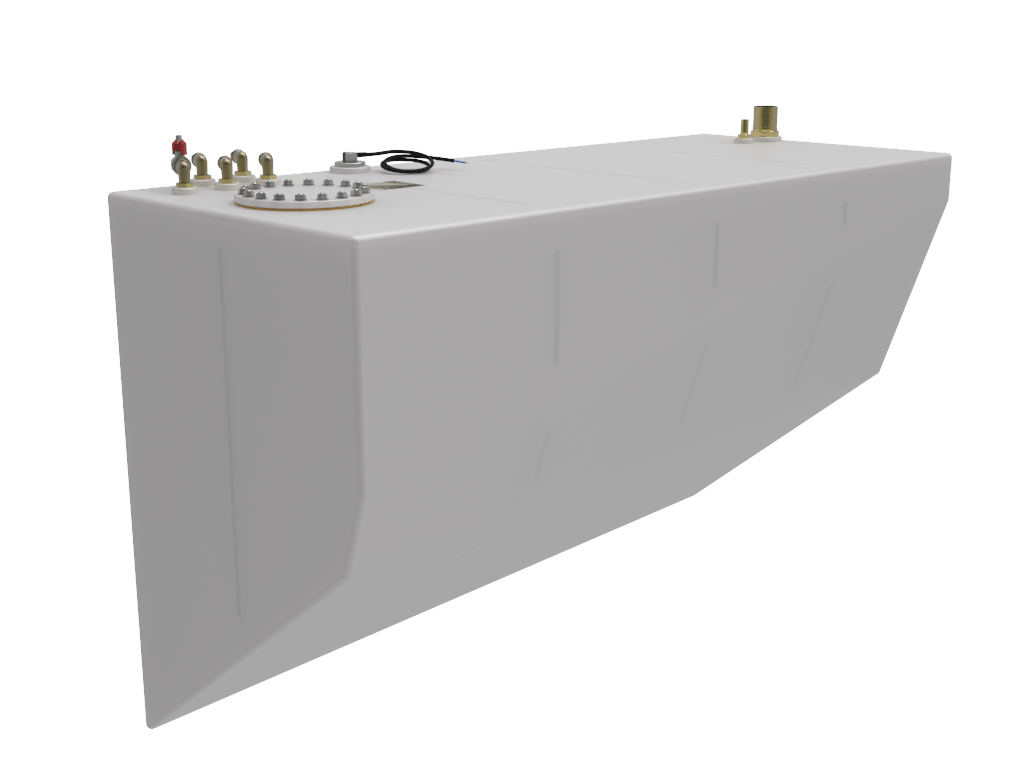

Nauticat 43 Starboard Diesel Tank
Replacement Port Diesel Tank for Nauticat 43 Motor Boats.
Manufactured from 10mm thick High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 1/2″ BSP – 16mm Brass Straight Hosetail
1 x 3/8″ BSP -10mm Straight Brass Hosetail & Ball Valve
3 x x 3/8″ BSP -10mm Straight Brass Hosetail
4 x Copper Dip Pipe
1 x 200 Nuts & Bolts Tek-Tanks Custom Hatch
1 x 1 1/4″ BSP Socket
1 x S3-80 Wema Level Indicator
1 x Analogue Fuel Gauge
Capacity: 492 litres
Position in Boat: Starboard
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
