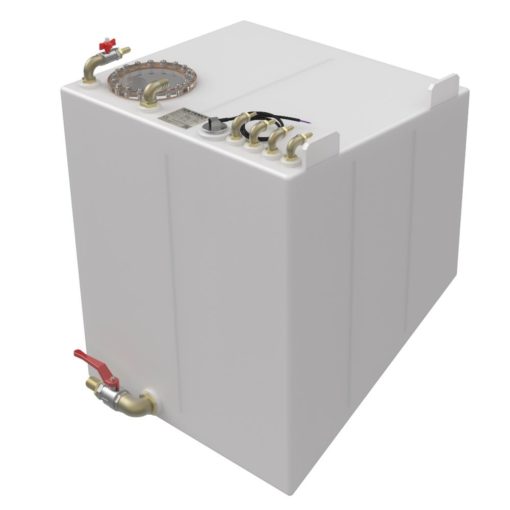

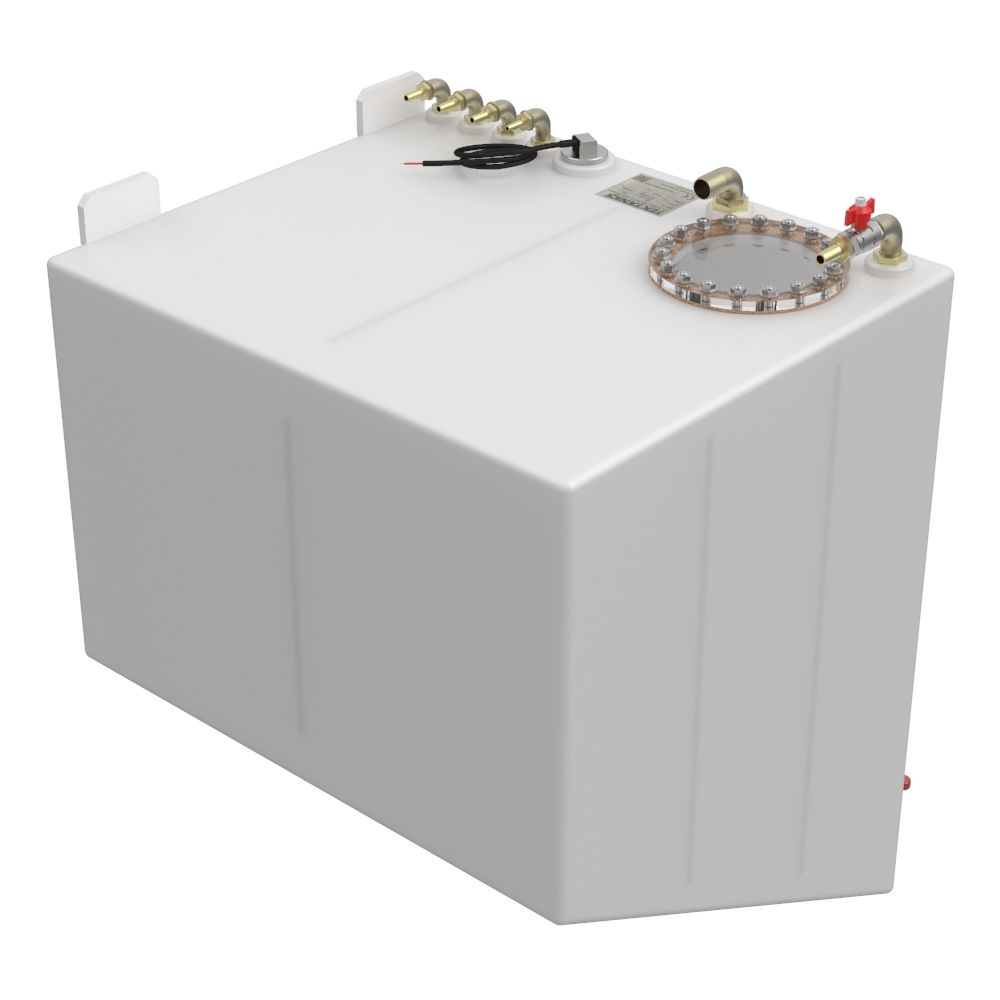

Nauticat 43 Diesel Tank made from 10mm Natural High Density Polyethylene.
Overall dimensions without fittings:
1 x 1″ BSP – 25mm Brass Elbow Hosetail
1 x 3/8″ BSP – 10mm Brass Elbow Hosetail c/w Brass Dip Pipe
4 x 1/4″ BSP – 6mm Brass Elbow Hosetail c/w Brass Dip Pipe
1 x 1/2″ BSP – 13mm Brass Elbow Hosetail c/w Brass Dip Pipe and Valve
1 x 1 1/4″ BSP – 32mm Brass Elbow Hosetail c/w Valve
S3-75 Wema Fuel Level Indicator
1 x 200mm Clear Acrylic Inspection Hatch
Capacity: 238 litres
Position in boat: Starboard Aft
Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
