Home / Plastic Tanks / Series C Plastic Tanks / Series C Fittings and Accessories
  • S38P Series C Waste
  • Viton O Ring

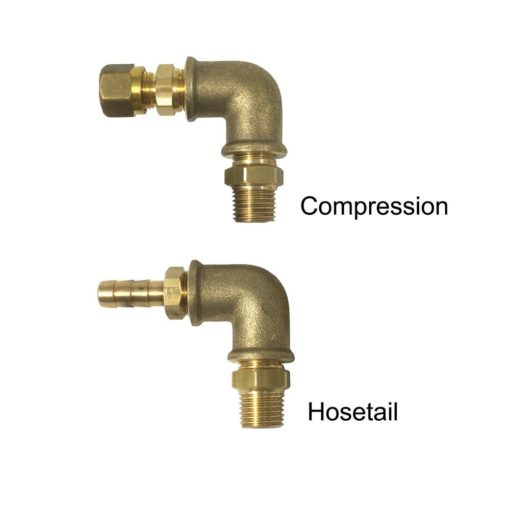

Series C Fuel Tank Returns

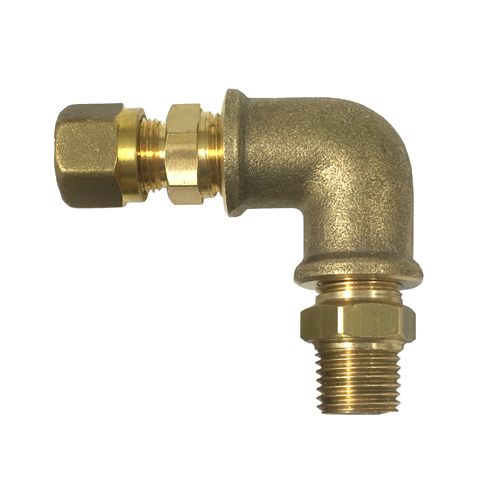

Series C Return Compression
Series C Fuel Tank Returns
Series C Return Compression

Series C Fuel Tank Return Fittings

£9.00 – £12.00

Series C Fuel Tank diesel return options.

Clear
Series C Fuel Tank Returns
Series C Fuel Tank Return Fittings
SKU: N/A Category: Series C Fittings and Accessories Tags: Series C Fuel Tanks, Series C Tank Accessories
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • RV and Campervan Tanks
    • Series D Plastic Water Tanks
    • Plating Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

A range of fitting assemblies suitable for fitting to Series C Fuel Tanks to allow the return of diesel fuel back to the tank from the engine.

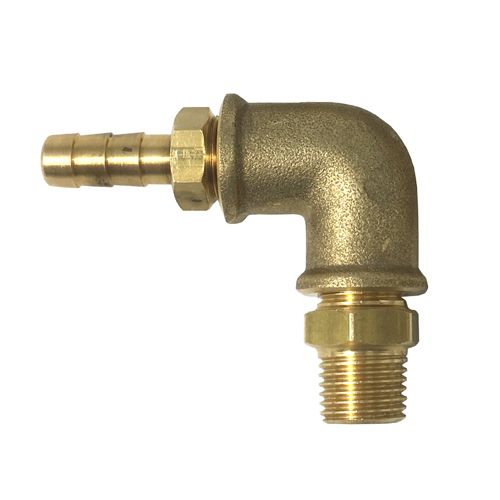

Choose a hosetail assembly for flexible rubber hose or a compression assembly for copper return pipes.

Both metric and imperial sizes are available for copper pipe.
These assemblies simply screw into a 1/4″ BSP female thread on the hatch plate after drilling out the blanking part below the 1/4″ BSP thread.


These fittings can be purchased for self-fitting or just add the Fitting Charge option to your basket and Tek Tanks will fit this for you.


Remember that a flexible pipe is measured from the inside diameter (bore) and copper pipe is measured from the outside (OD).
Be careful when measuring the copper pipe. The difference between metric and imperial is very small and does make a difference.
Metric 6mm is not the same as 1/4″. 1/4″ converted to metric is 6.35mm and will NOT fit a 6mm compression fitting.
A micrometre or vernier callipers are usually required to measure copper pipe accurately.




Weight 0.1 kg
Type

6mm Hosetail, 8mm Hosetail, 10mm Hosetail, 6mm Compression, 8mm Compression, 10mm Compression, 1/4" Compression, 5/16" Compression, 3/8" Compression, Fitting Charge
