Series C High Quality Water Tank Hatch
£107.54 – £117.97 Inc VAT

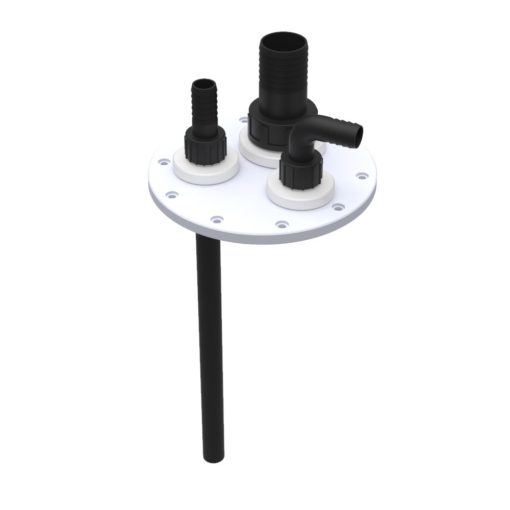

A range of hatch plates suitable for the Series C modular Water Tank range.
A range of quality hatch plates manufactured by Tek Tanks suitable for the Series C Modular Water Tank range.
These plates screw down with large self tapping screws (supplied) and are sealed to the tank with an O ring on the underside of the plate.
Available in 6 different combinations of hosetails. Please select your option from the drop down list above.
Hatch Options:
Inlet: 1 1/2″ (38mm) Straight or Elbow
Vent: 1/2″ (13mm) Straight or Elbow
Feed (Outlet): 1/2″ (13mm) Straight or Elbow. Dip pipe is welded to the underside of the hatch plate. This will be the correct length for the tank you order.
Dimensions:
Diameter: 175mm
Thickness: 10mm
Height above top of tank: 118mm (Elbow version)
Should the combination of hosetails not be suitable for you application then please do give us a call, we are sure to have a solution.
Please note a lead time of 2-3 working days for this hatch.
| Weight | N/A |
|---|---|
| Options | Option 1: 1 x 1 1/2" Straight + 1 x 1/2" Straight + 1 x 1/2" Elbow, Option 2: 1 x 1 1/2" Elbow + 2 x 1/2" Elbows, Option 3: 1 x 1 1/2" Straight + 2 x 1/2" Straights, Option 4: 1 x 1 1/2" Elbow + 1 x 1/2" Straight + 1 x 1/2" Elbow, Option 5: 1 x 1 1/2" Straight + 2 x 1/2" Elbows, Option 6: 1 x 1 1/2" Elbow+ 2 x 1/2" Straights |
