Home / Plastic Tanks / Plastic Tank Accessories / Plastic Tank Fittings / Water and Waste Tank Fittings
  • Elbow Plastic Hosetails
  • FLB-1 Inspection Hatch 02

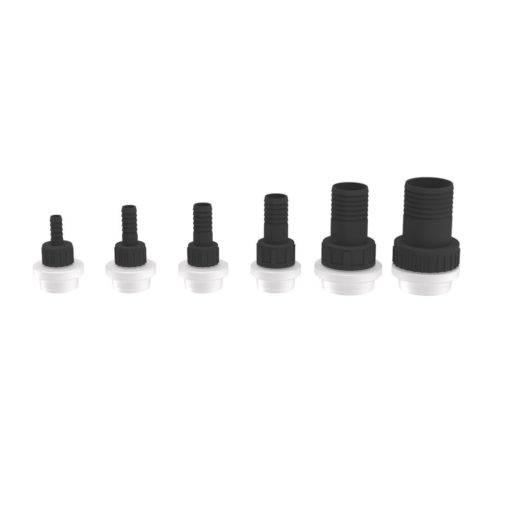

Straight Plastic Hosetails

Straight Plastic Hosetail Assemblies

£18.91 – £35.64 Inc VAT

A range of straight plastic hosetails for use with Series A and Custom Water, Waste and Grey Water Tanks.

Clear
Straight Plastic Hosetails
Straight Plastic Hosetail Assemblies
SKU: N/A Category: Water and Waste Tank Fittings Tags: Black Water Tanks, Grey Water Tanks, Tank Fittings, Water Tanks
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • RV and Campervan Tanks
    • Series D Plastic Water Tanks
    • Plating Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Camper & Caravan Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

A range of straight plastic hosetails for use with Series A and custom built Water, Waste and Grey Water Tanks.

The hosetails are screwed onto  male threaded HDPE socket by means of a separate female nut. The socket is welded to the tank by Tek Tanks using an advanced fusion welding process. The hosetail is sealed with a ribbed rubber washer that contacts the underside of the hosetail and the top of the machined socket face. These fittings need only to be done up hand tight.

The price includes marking out, drilling the hole, welding the threaded socket and the pressure testing of the whole fitted assembly.

The threaded socket is not removable once welded to the tank and stands 24mm above the tank top. Please allow for this measurement when considering how to get the tank in and out of position.

Dip pipes for drawing off the contents with a pump can be fitted to any of these assemblies. Please see the Dip Pipe products for more information on lengths and available diameters and materials.

Height above tank top:
S13P = 64mm
S16P = 64mm
S19P = 68mm
S25P = 74mm
S38P = 92mm
S50P = 100mm


Replacement Sealing Washers can be found here.


Weight N/A
Size

13mm (1/2"), 16mm (5/8"), 19mm (3/4"), 25mm (1"), 38mm (1 1/2"), 50mm (2")
