A range of brass straight valved hosetails.

SKU: N/A Category: Tag:

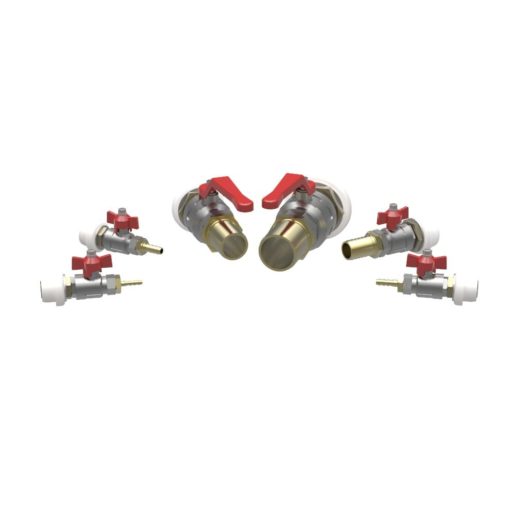

A range of brass assemblies with  straight valved  hosetails. Ideal for shutting off fuel supply when not in use. Tap handles are removable.
6mm – 25mm valves have a tee handle and 38mm – 50mm valves have a lever handle.

The valved straight hosetail assemblies are screwed into female threaded HDPE sockets. The socket is welded to the tank by Tek Tanks using an advanced fusion welding process. The fittings in these assemblies are sealed with a non setting, anti-vibration sealing compound.

The price includes marking out, drilling the hole, welding the threaded socket and the pressure testing of the whole fitted assembly.

The threaded socket is not removable once welded to the tank and stands 10mm above the tank top. Please allow for this measurement when considering how to get the tank in and out of position should the fittings have to be removed.

Dip pipes for drawing off the contents with a pump can be fitted to S06B-V, S08B-V, S10B-V and S13B-V. Larger sizes can be made, please phone for more details.
Please see the Dip Pipe products for more information on lengths and available diameters.

Fuel grade hose to suit these assemblies can be found here.

Additional information


6mm (1/4"), 8mm (5/16"), 10mm (3/8"), 13mm (1/2"), 16mm (5/8"), 19mm (3/4"), 25mm (1"), 38mm (1 1/2"), 50mm (2")
