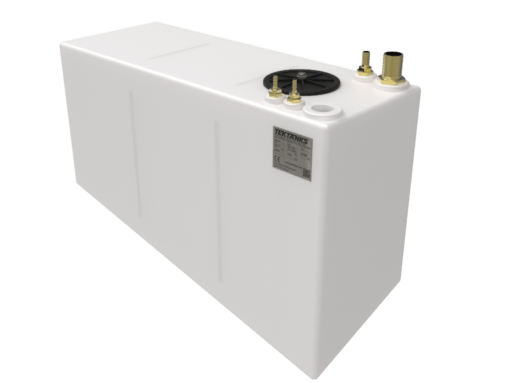

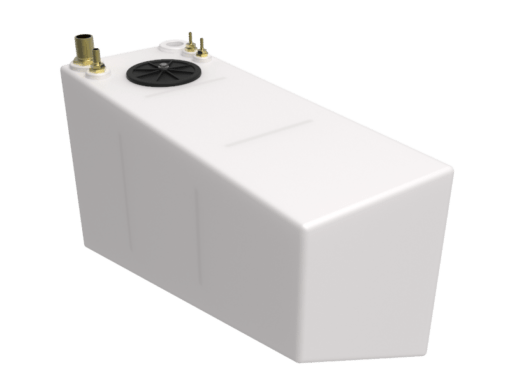

Van Der Stadt Diesel Tank

Replacement Plastic Diesel for Van Der Stadt Pioneer 10.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 800mm
Width: 300mm
Height: 550mm

Fittings:

1 x Standard Inspection Hatch (FLB)
1 x 5/15″ BSP – 8mm Straight Brass Hosetail
1 x 5/8″ BSP – 16mm Straight Brass Hosetail
1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x BrassDip Pipe
1 x 1 1/4″ BSP – 32mm Female Socket

Capacity: 81 litres

Position in Boat: Forward  Port Cockpit Locker

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
