Home / Plastic Tanks / RV and Campervan Tanks
  • VW Transporter 68 Litre Water Tank 01
  • 70-31-17-6MM-BLK

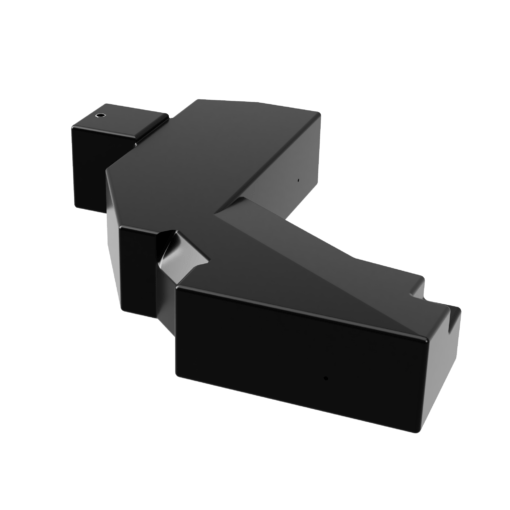

VW Transporter 69 Litre Water Tank 03

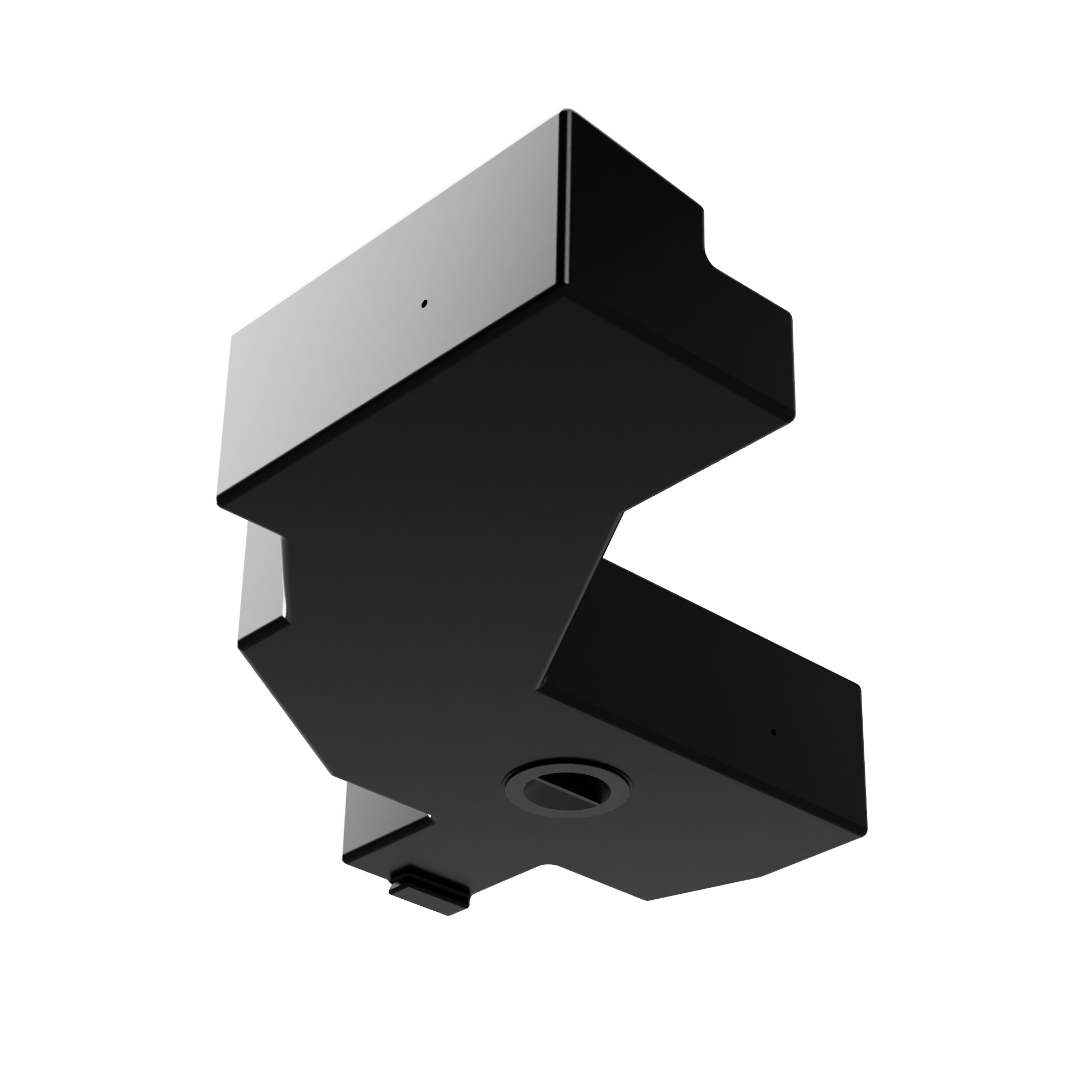

VW Transporter 69 Litre Water Tank 01

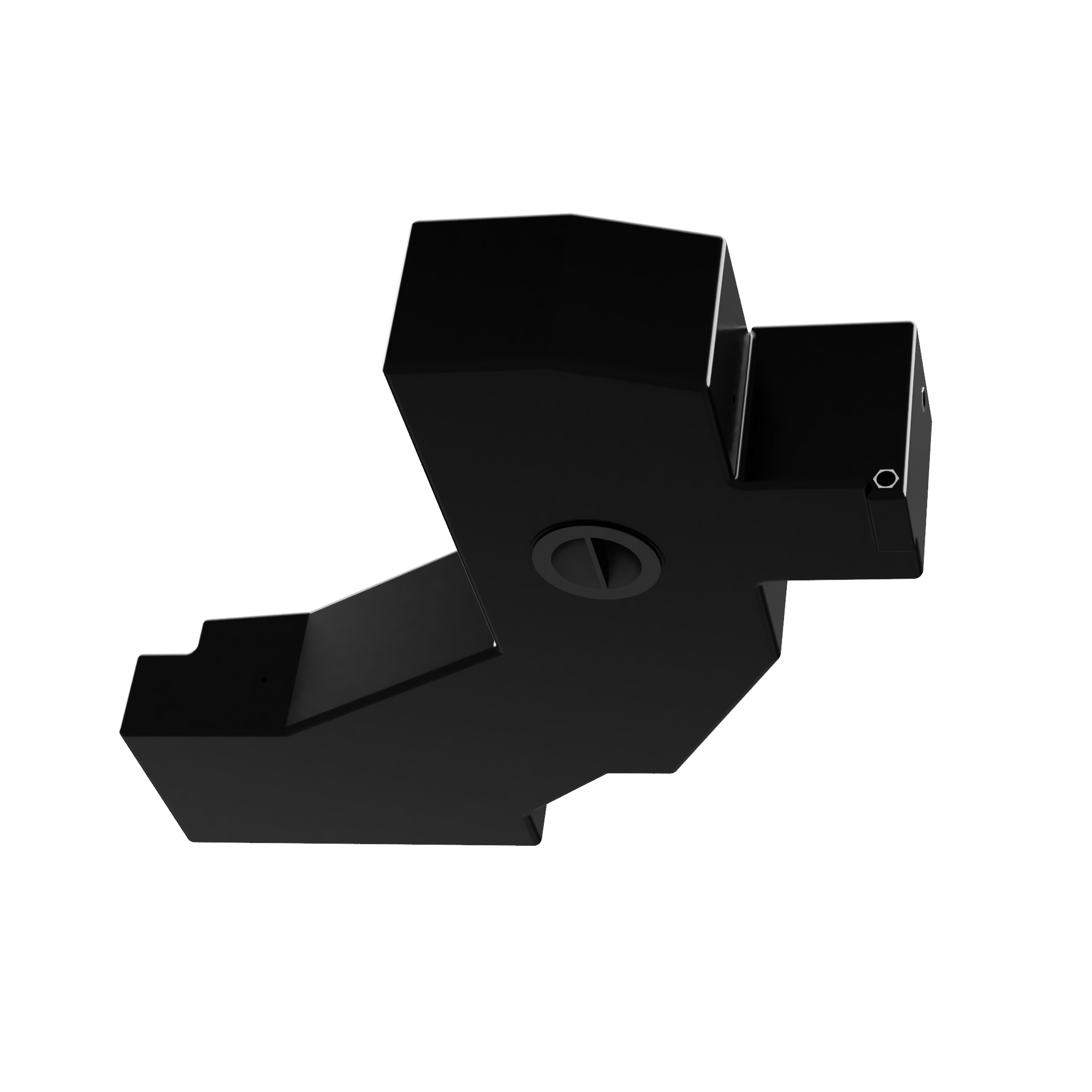

VW Transporter 69 Litre Water Tank 02

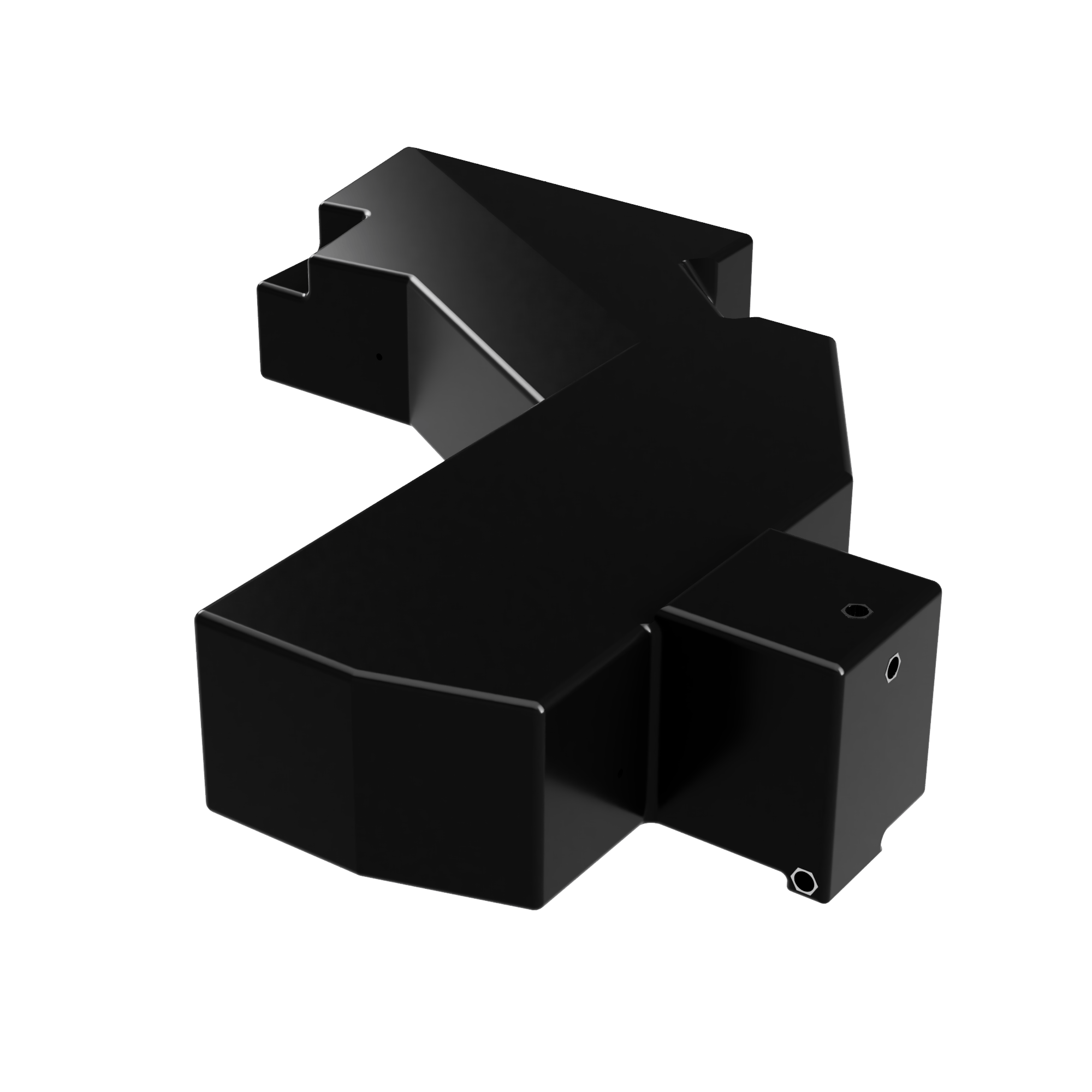

VW Transporter 69 Litre Water Tank 04

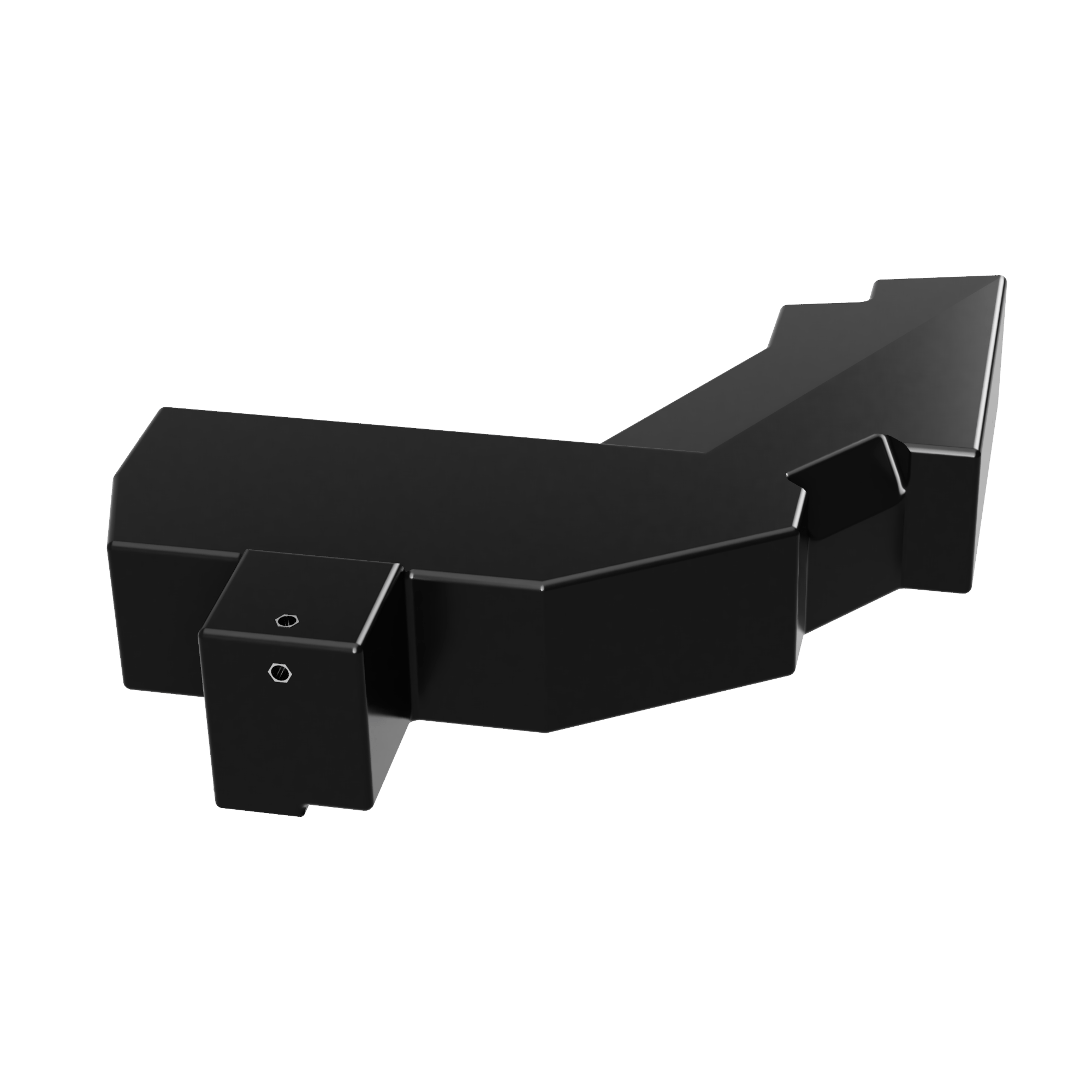

VW Transporter 69 Litre Water Tank 05
VW Transporter 01
VW Transporter 69 Litre Water Tank 03
VW Transporter 69 Litre Water Tank 01
VW Transporter 69 Litre Water Tank 02
VW Transporter 69 Litre Water Tank 04
VW Transporter 69 Litre Water Tank 05
VW Transporter 01

VW Transporter 69 Litre Water Tank

£162.00 – £210.00

69 litre underslung plastic MDPE tank to suit the VW Transporter vehicles from 2013 onwards.

Moulded in black MDPE to prevent any algae growth and provide taste free water.
Also suitable as a grey water tank for sink and shower waste.

Made in Britain Logo

Documentation

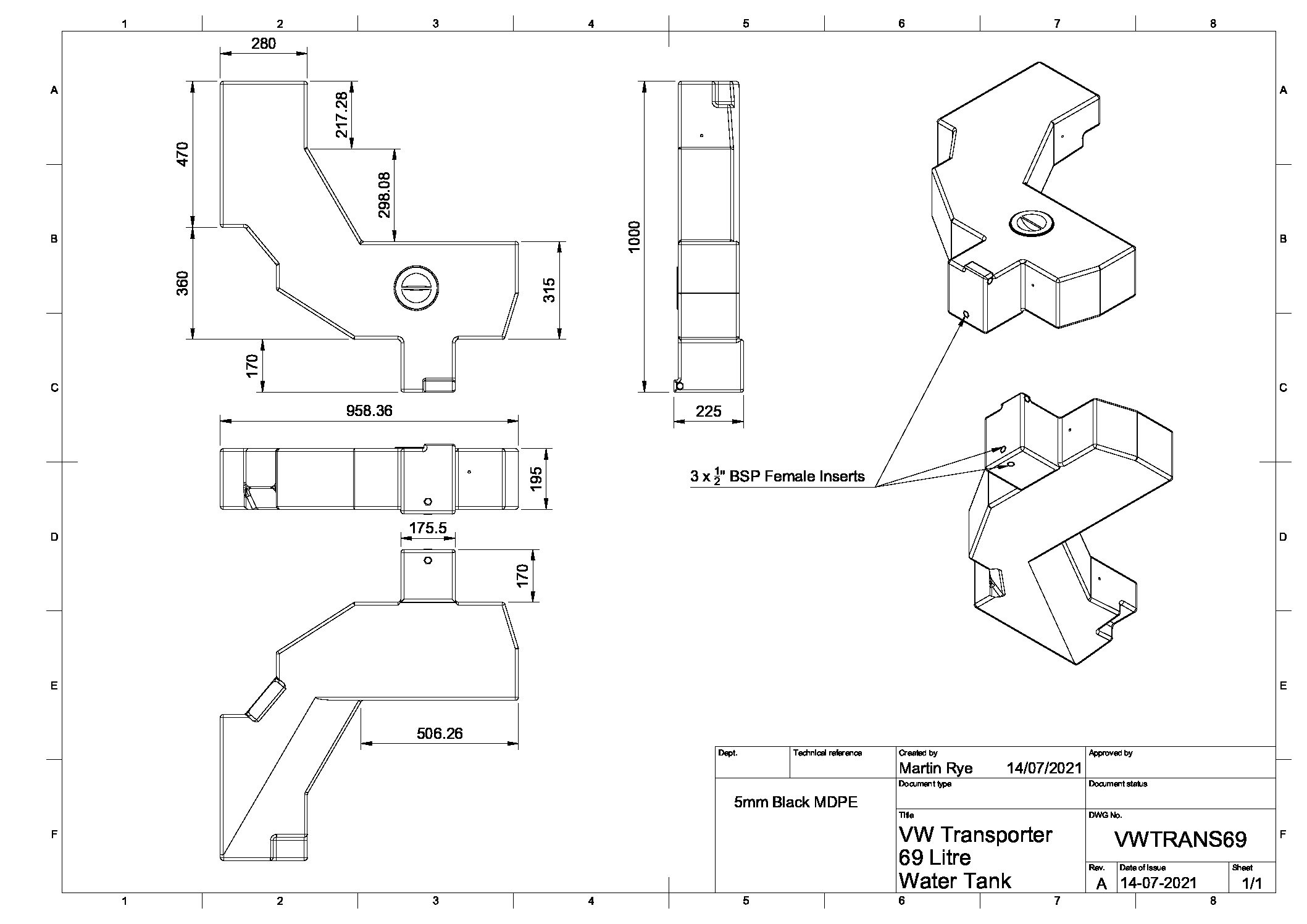

  • VW Transporter 69 Litre Tank Drawing
Clear
VW Transporter 69 Litre Water Tank 03
VW Transporter 69 Litre Water Tank
SKU: N/A Category: RV and Campervan Tanks Tag: Automotive Tanks
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • RV and Campervan Tanks
    • Series D Plastic Water Tanks
    • Plating Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
    • Keepalive Pumps
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

Volume [litres] :               69
Dimensions [mm]:         Length: 1000; Width: 986; Height: 225.

Suitability:                         Fresh Water, Grey Water
Material:                            Medium Density Polyethylene (MDPE)
Wall thickness [mm]:    5
Colour:                              Black
Lead time:                        Next working day. Subject to availability.
Warranty:                         1 year


Comes with 3 x 1/2″ BSP female inserts suitable for using as a vent/inlet/outlet.

If a larger fitting is required for example an inlet remote filler then please call for more information.
Tek Tanks can factory fit any fitting to these tanks from our wide selection of tank fittings.


This tank can be supplied with an optional fitting kit to help speed up installation. Please select from the drop down menu if required.


3D Interactive Model


Hold down left mouse button to rotate model
Turn mouse wheel to zoom in and out
Double click left button to focus on a particular area
Hold down mouse wheel to pan




Weight N/A
Select Option

Tank Only, Tank + Installation Strap Kit

Product Enquiry

Related products

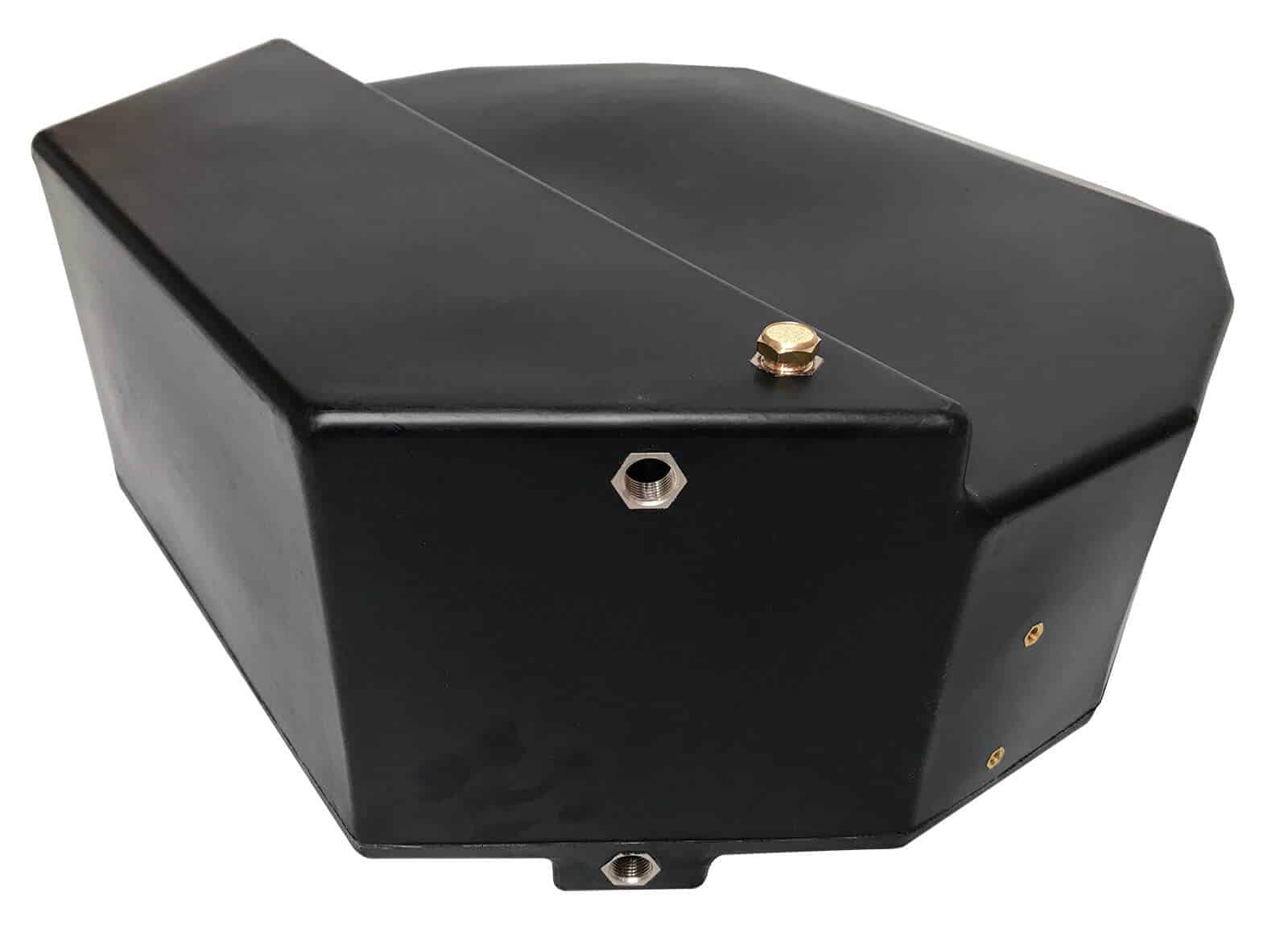

VW Transporter 68 Litre Water Tank 01
+
Quick View

RV and Campervan Tanks

VW Transporter 68 Litre Water Tank

£168.00 – £216.00
70-31-17-6MM-BLK
+
Quick View

RV and Campervan Tanks

30 Litre Black 700 x 310 x 170 (LWH)

£174.72

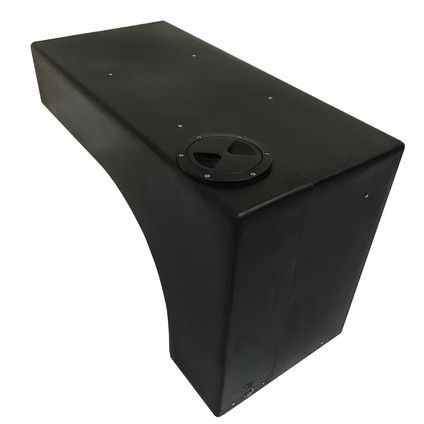

T57WBK4I 57 Litre Wheel Arch Tank
+
