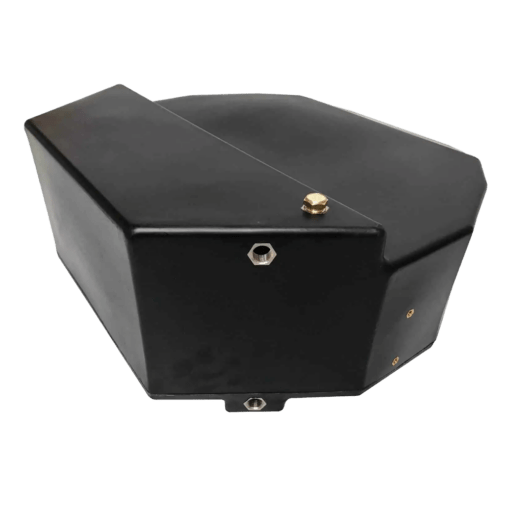

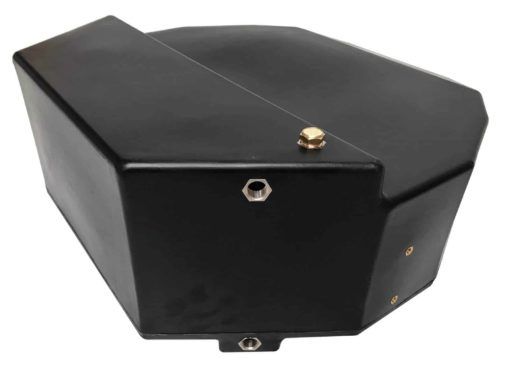

VW Transporter 68 Litre Underslung Spare Wheel Water Tank

Volume [litres] :               68
Dimensions [mm]:         Length: 680; Width: 740; Height: 250.

Suitability:                         Fresh Water, Grey Water
Material:                            Medium Density Polyethylene (MDPE)
Wall thickness [mm]:    5
Colour:                              Black
Lead time:                        Next working day. Subject to availability.
Warranty:                         1 year

Underslung tank for the VW Transporter T5 onwards that is fitted in place of the spare wheel.  This fits all versions including the 4Motion.  The spare wheel holder needs to be positioned on the lowest setting if not already done so, the brackets are fitted to the tank and offered up and secured using rivet nuts on the underside of the van, the spare wheel holder is then refitted for extra security.

If a larger fitting is required for example an inlet remote filler then please call for more information.
Tek Tanks can factory fit any fitting to these tanks from our wide selection of tank fittings.

This tank can be supplied with an optional fitting kit to help speed up installation. Please select from the drop down menu if required.
