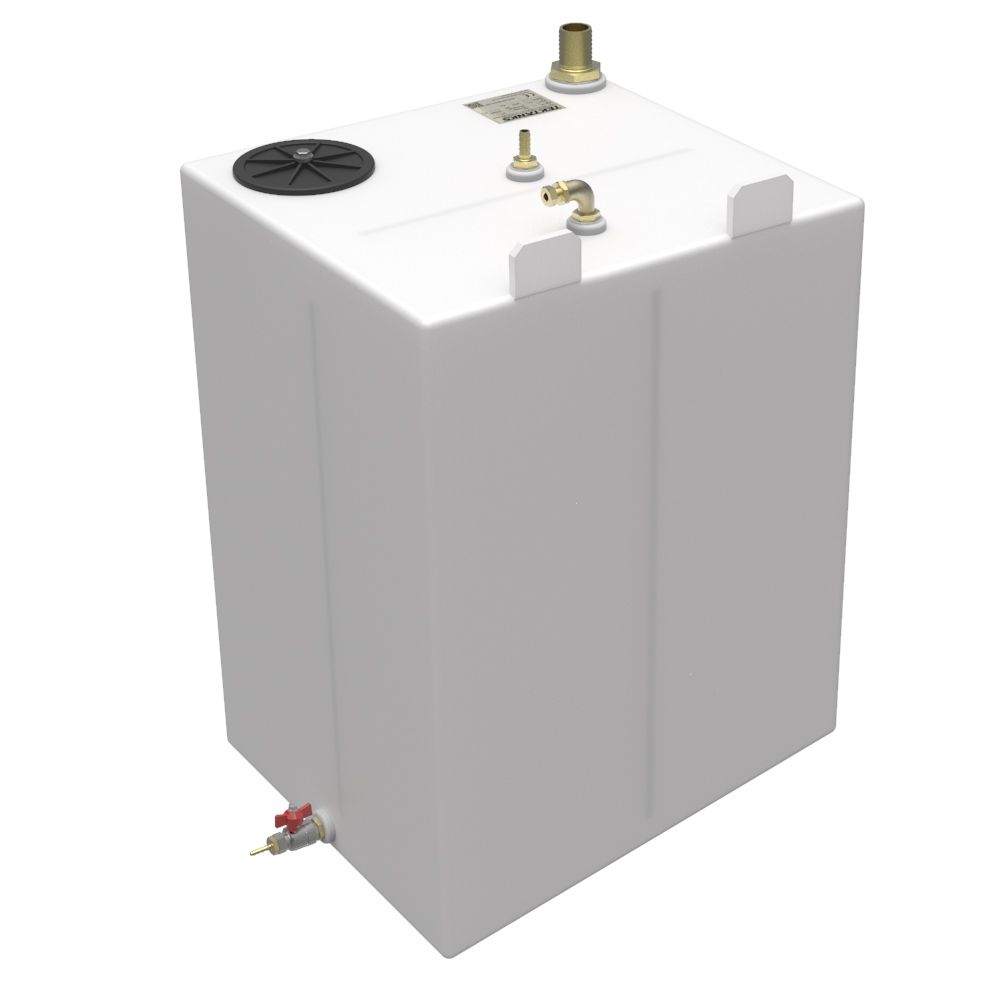

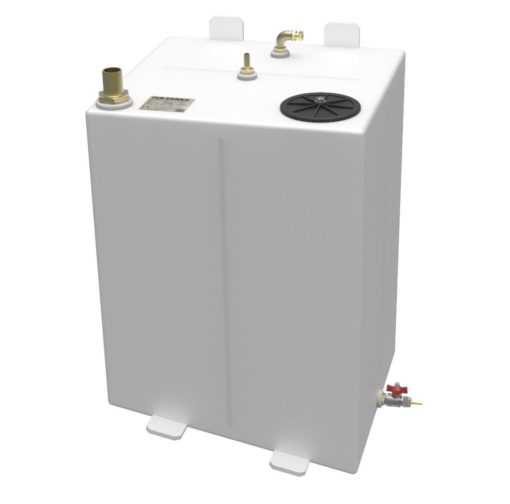

Westerly Konsort Diesel Tank made from 10mm Natural High Density Polyethylene
Overall dimensions without fittings:
1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x 1/2″ BSP – 13mm Straight Brass Hosetail
1 x 1/4″ BSP – 6mm Straight Brass Hosetail with Valve
1 x 5/16″ BSP – 8mm Elbow Brass Hosetail with Copper Dip Pipe
4 x Flanges Undrilled
Capacity: 163 Litres
Position in boat: Port
Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
