Home / Plastic Tanks / Series A Plastic Tanks / Series A Vertical Waste Tanks
  • 80 Litre Vertical Waste Tank
  • 60 Litre Vertical Waste Tank
40 Litre Vertical Waste Tank

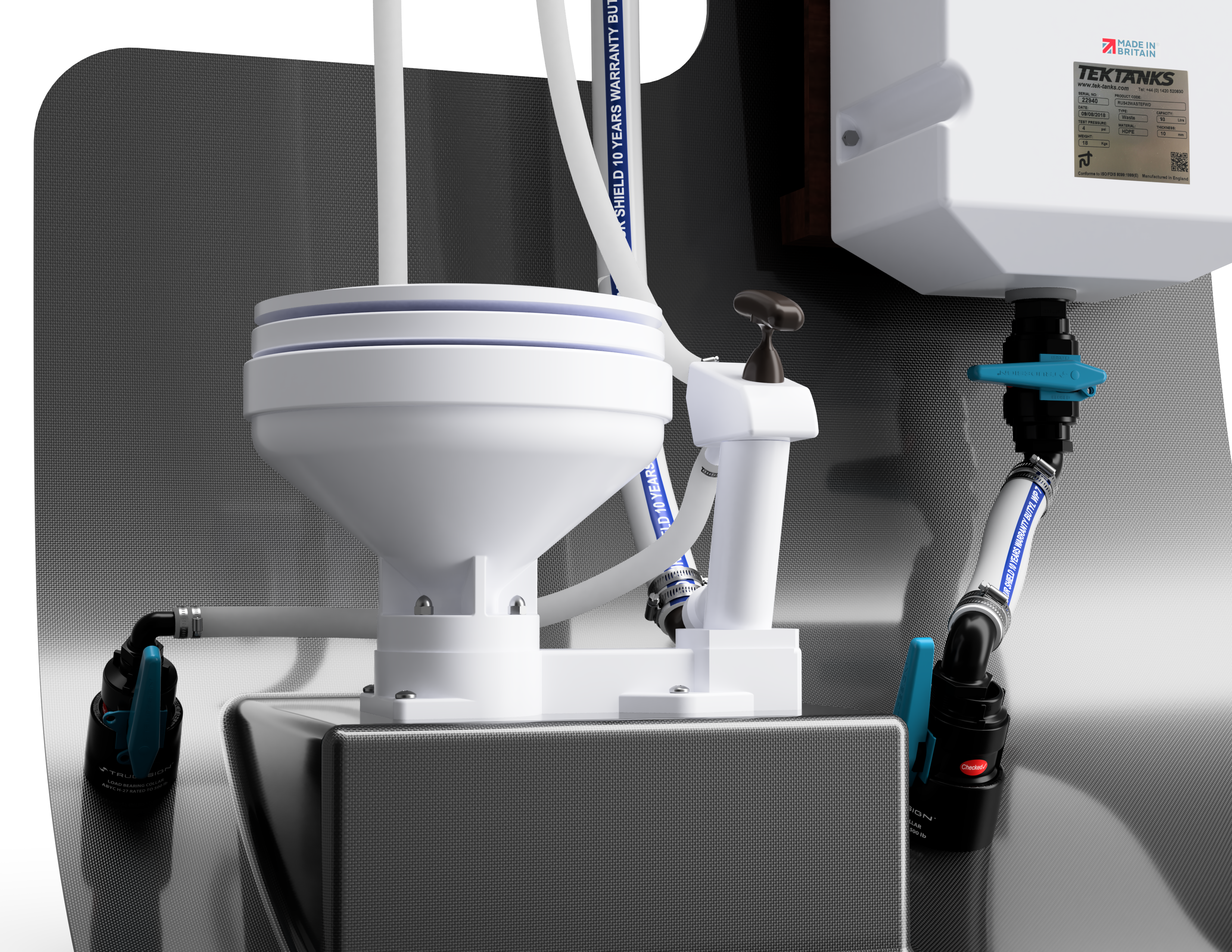

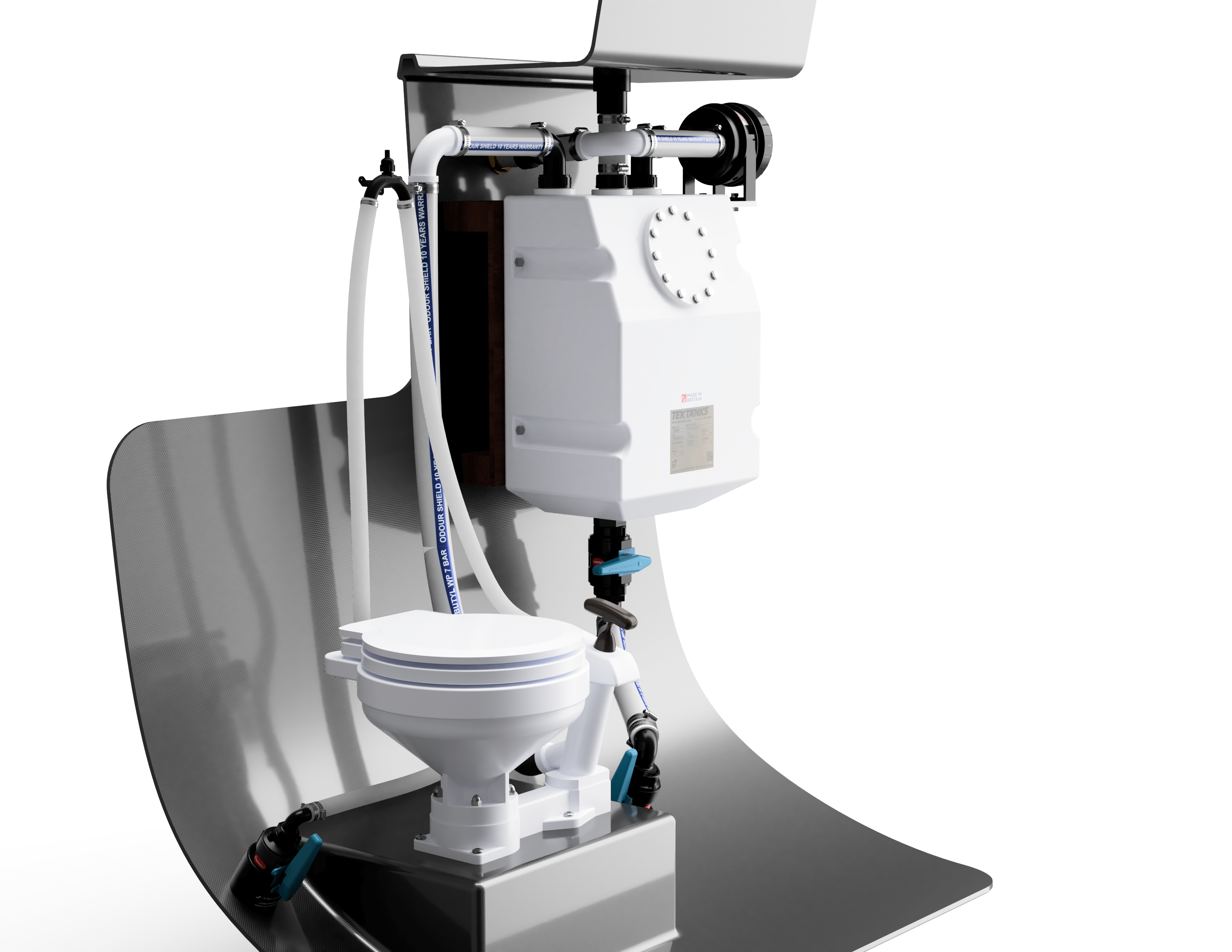

Vertical Waste Tank Installation
Tek-Tanks 5 Year Warranty

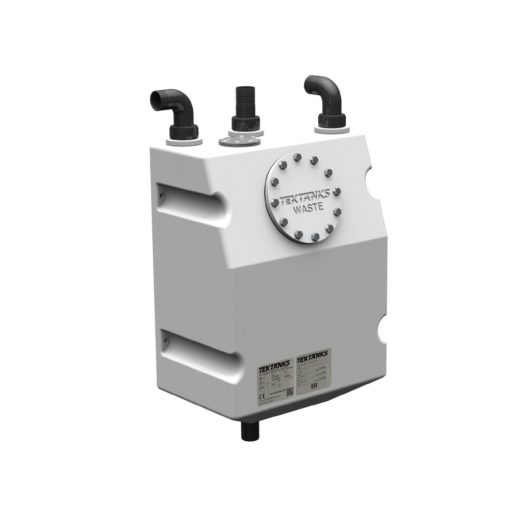

40 Litre Vertical Waste Tank
Vertical Waste Tank Installation
Tek-Tanks 5 Year Warranty

40 Litre Vertical Waste Tank

£350.00

A 40 litre vertical bulkhead mounted waste holding tank suitable for gravity discharge.
Scroll down and take an interactive tour of this tank.

Documentation

40 Litre Series A Tank

  • 40 Litre Vertical Waste Tank Drawing
  • Fittings Guide for Custom Versions
40 Litre Vertical Waste Tank
40 Litre Vertical Waste Tank

£350.00

SKU: 40LITREVERTWASTE Category: Series A Vertical Waste Tanks Tag: Sanitation Equipment
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • Series D Plastic Water Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
    • C-Warm Calorifiers and Accessories
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
    • Keepalive Pumps
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

Gravity Discharge Holding Tank Layouts.  Follow this link on how to plumb this tank into your boat.

Rotationally Moulded 10mm thick Series A Waste Tank.
Vertically Mounted can be bolted directly to a bulkhead or suitable structure saving time and money on installation.
Large inspection hatch which can be easily removed for cleaning and maintenance.
The bottom of the tank is gently sloped to assist the migration of the waste to the outlet.
Can be used with an open seacock when at sea.
The deck pump out is situated directly above the outlet in case of blockage.
Supplied with 4 x 10mm stainless steel coach screws for mounting to a bulkhead or ply plate.

Dimensions:
Length: 400mm
Width: 250mm
Height: 550mm

Fittings:
1 x 175mm Nuts and Bolts Hatch
2 x 1 1/2″ Plastic Elbow Hosetails
2 x 1 1/2″ Plastic Straight Hosetails
1 x Dip Pipe

Capacity: 40 Litres


This range of tanks can be supplied as a customised package to suit individual requirements. Please call for more information if you require this option.

As standard they are supplied with an 1 1/2″ straight outlet in the tank bottom, an 1 1/2″ straight deck pumpout fitting with an internal dip pipe, an 1 1/2″ elbow vent and an 1 1/2″ elbow inlet. For really successful gravity discharge a 2″ outlet would be more suitable, which can be fitted by Tek Tanks if required. This will of course require a 2″ seacock.

It is quite common to have an 1 1/2″ ball valve fitted to the underside of the tank to avoid having to turn the seacock on and off. Please find the dimensions below for an 1 1/2″ TruDesign Ball Valve with a 90 degree hosetail. This dimension decreases to 200mm if a straight hosetail is used.

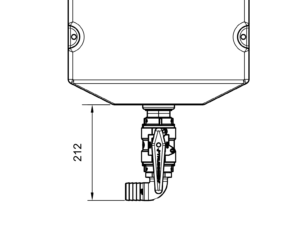

Series A Vertical Waste Ball Valve Dimensions

Comes with a Tek Tanks 5 year warranty as standard on this product.

These Tanks are subject to a lead time of 7-10 Working Days





Weight 10 kg
