Home / Plastic Tanks / Plastic Tank Accessories / Plastic Tank Fittings / Diesel Tank Fittings
  • Copper Dip Tubes
  • Diesel Tank Fittings Category

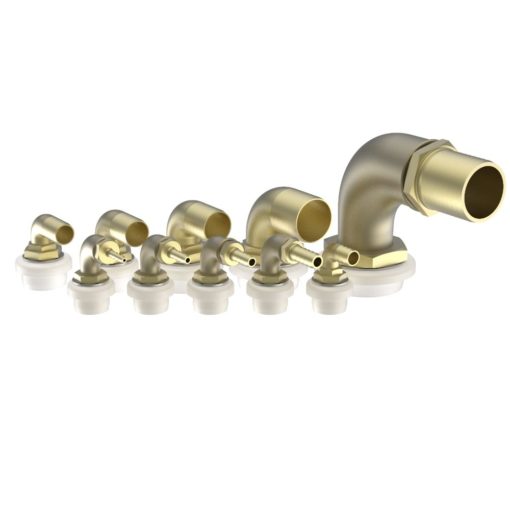

Brass Elbow Hosetails

Elbow Brass Hosetail Assemblies

£27.54 – £58.14

A range of elbow brass hosetails for use with Series A and Custom Built Diesel Fuel Tanks.

Clear
Brass Elbow Hosetails
Elbow Brass Hosetail Assemblies
SKU: N/A Category: Diesel Tank Fittings Tags: Diesel Fuel Tanks, Tank Fittings
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • Series D Plastic Water Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
    • C-Warm Calorifiers and Accessories
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
    • Keepalive Pumps
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

A range of elbow brass hosetails for use with Series A and Custom Built Diesel Fuel Tanks.

The hosetails are screwed into female threaded HDPE sockets. The socket is welded to the tank by Tek Tanks using an advanced fusion welding process. The hosetails are sealed with a non setting, anti-vibration sealing compound.

The price includes marking out, drilling the hole, welding the threaded socket and the pressure testing of the whole fitted assembly.

The threaded socket is not removable once welded to the tank and stands 10mm above the tank top. Please allow for this measurement when considering how to get the tank in and out of position should the fittings have to be removed.

Dip pipes for drawing off the contents with a pump can be fitted to E06B, E08B, E10B and E13B. Larger sizes can be made, please phone for more details.
Please see the Dip Pipe products for more information on lengths and available diameters.

Fuel grade hose to suit these assemblies can be found here.

Height above tank top:
E06B = 49mm
E08B = 47mm
E10B = 56mm
E13B = 50mm
E16B = 51mm
E19B = 56mm
E25B = 60mm
E32B = 81mm
E38B = 81mm
E50B = 87mm

Weight N/A
Size

6mm (1/4"), 8mm (5/16"), 10mm (3/8"), 13mm (1/2"), 16mm (5/8"), 19mm (3/4"), 25mm (1"), 32mm (1 1/4", 38mm (1 1/2"), 50mm (2")
