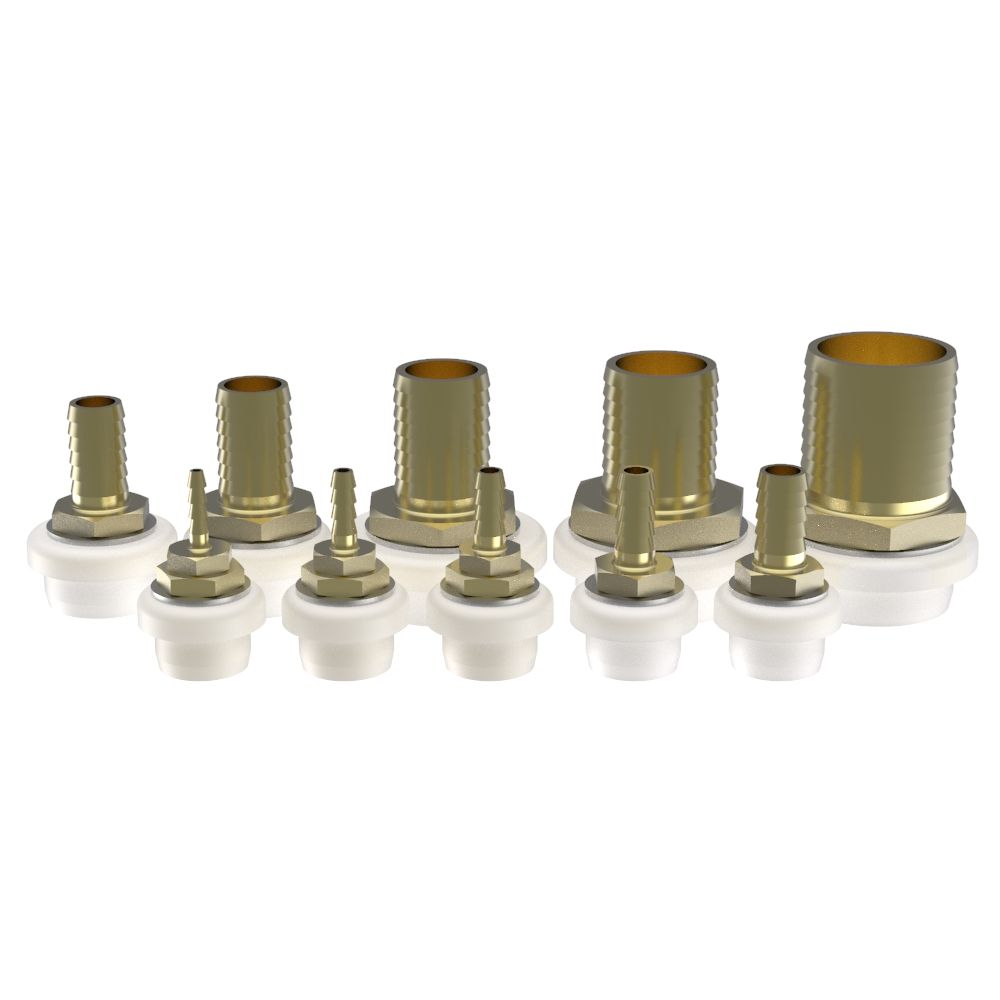

Straight Brass Hosetail Assemblies

A range of straight brass hosetails for use with Series A and Custom Built Diesel Fuel Tanks.

The hosetails are screwed into female threaded HDPE sockets. The socket is welded to the tank by Tek Tanks using an advanced fusion welding process. The hosetails are sealed with a non setting, anti-vibration sealing compound.

The price includes marking out, drilling the hole, welding the threaded socket and the pressure testing of the whole fitted assembly.

The threaded socket is not removable once welded to the tank and stands 10mm above the tank top. Please allow for this measurement when considering how to get the tank in and out of position should the fittings have to be removed.

Dip pipes for drawing off the contents with a pump can be fitted to S06B, S08B, S10B and S13B. Larger sizes can be made, please phone for more details.
Please see the Dip Pipe products for more information on lengths and available diameters.

Fuel grade hose to suit these assemblies can be found here.

Height above tank top:
S06B = 49mm
S08B = 47mm
S10B = 56mm
S13B = 64mm
S16B = 64mm
S19B = 68mm
S25B = 74mm
S38B = 92mm
S50B = 100mm
