Home / Senders and Gauges / Gauges / LED
  • Wema LED Water Gauge
Wema LED Waste Gauge

LED Waste Gauge

£57.72

7 Step Led Gauge for Waste

European Specification

Documentation

LED Gauges

  • LED Gauge Wiring Diagram

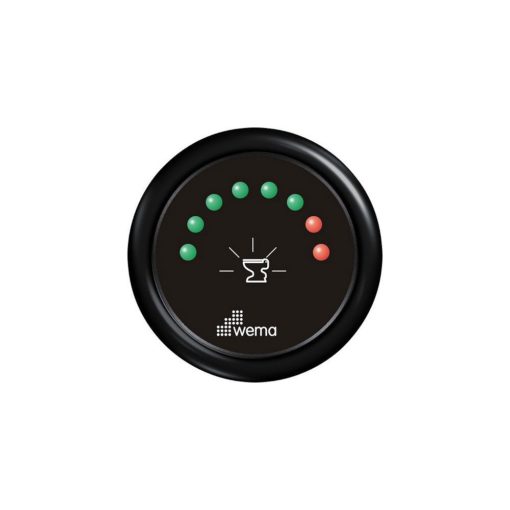

Wema LED Waste Gauge
LED Waste Gauge

£57.72

SKU: ILED-HTG Category: LED Tags: Gauges, Level Indication
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • RV and Campervan Tanks
    • Series D Plastic Water Tanks
    • Plating Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Product Enquiry

7 Step Led Gauge for Waste Holding Tank applications.

European Specification only

  • Holding Tank level
  • 52mm diameter gauge
  • 8 bright LEDs
  • 12v/24v
  • Power draw approximately 50ma
  • 0-190 ohms
  • Only available, as standard, with black face & black bezel (options available for orders greater than 25 units)
  • Red LED’s will flash when holding tank is full
  • Works with S3 senders of all lengths

WIRING INSTRUCTIONS (Wiring diagram is included with the product or can be downloaded from the Document Section above.

Black        –    to sensor
Red           –    to positive (+)
Blue          –    to ground (-)
Yellow       –    Red LEDs flashing On/Off – Earth to stop flashing.

INSTALLATION INSTRUCTIONS

1. Cut a 52mm (2 1/16″) diameter hole in the panel.

You will need a minimum clearance of 55mm (2 3/16″) behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.
3. Connect wires according to wiring diagram.
4. If you would like the Red LEDs to flash then do not connect the yellow wire.

If you would like the Red LEDs to remain on without flashing then connect the yellow wire to earth,

* Note the use of dropping resistors for 24V circuit.
5. Insert wire harness into port at the back of the gauge.
