  • Skin Fitting Application Tools
TruDesign Load Bearing Collars 02
TruDesign Load Bearing Collars
TruDesign Load Bearing Collars 02
TruDesign Load Bearing Collars

TruDesign Load Bearing Collars

£14.74 – £21.23

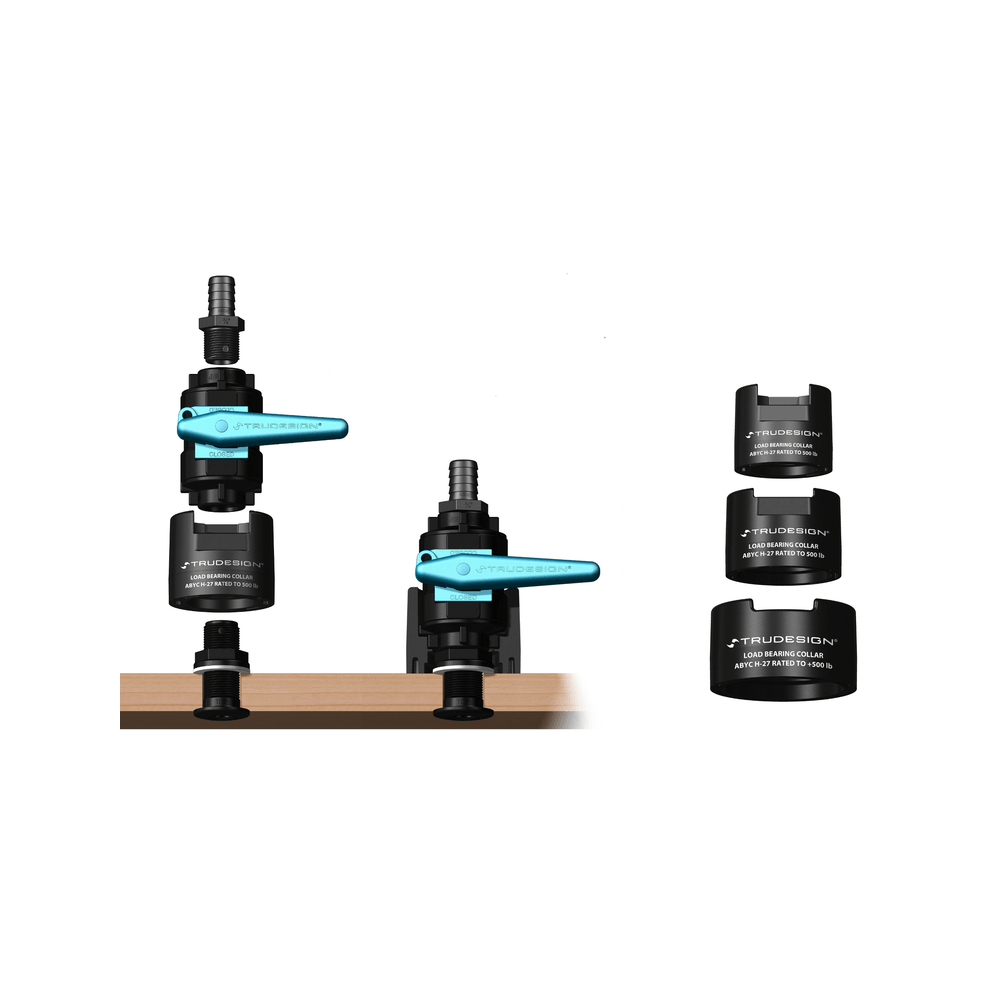

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves.

Documentation

TruDesign Load Bearing Collars

  • Data Sheet
Clear
TruDesign Load Bearing Collars 02
TruDesign Load Bearing Collars
SKU: N/A Category: TruDesign Skin Fittings and Seacock Kits Tags: Load Bearing Collars, Skin Fittings
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • RV and Campervan Tanks
    • Series D Plastic Water Tanks
    • Plating Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry

TruDesign Logo

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves.

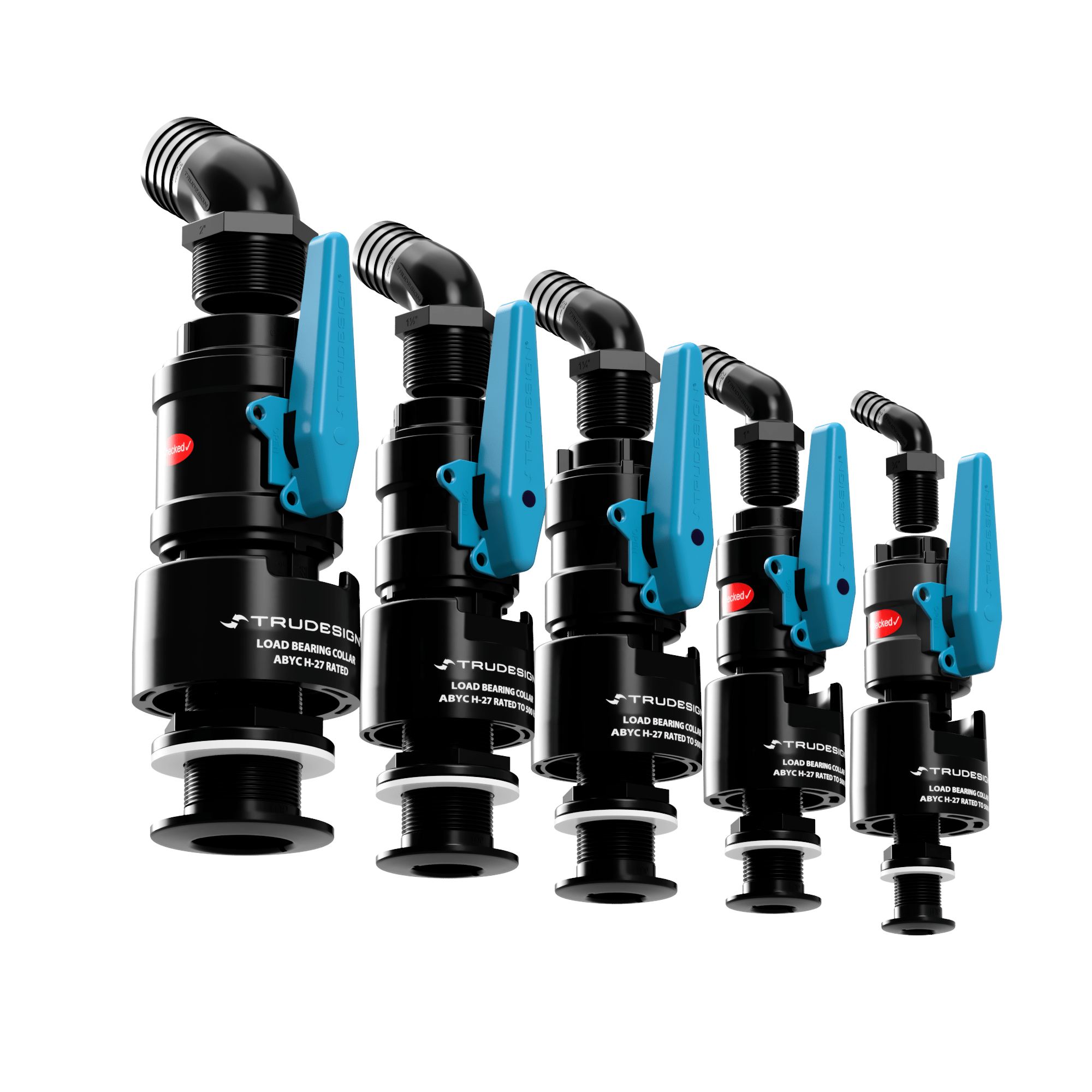

With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500 lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds – complying with North American ABYC H-27 standards.


Note:
TruDesign 2″ Skin Fittings meet the requirements of H-27 as standard (i.e. without a Large Collar installed). Adding a Large Collar to assemblies of this size increases the overall strength and protects the vulnerable exposed section of thread on the Skin Fitting.


Features:

  • ABYC H-27 compliance for ½”, ¾”, 1”, 1¼”, 1½”, and 2″ sized assemblies. Independently verified by IMANNA Laboratory, Inc. (USA).
  • Compact footprint
  • No additional bolts or fasteners through or on to the hull
  • Ability to retrofit to existing TruDesign assemblies
  • Compatible with all hull types across a wide range of hull thicknesses – download product info sheet above
  • Shrouded protection
  • Fool-proof assembly – if not snug when tightened the Skin Fitting’s length will need shortening. See info sheet.
  • Manufactured from a glass reinforced nylon composite
  • Immune to corrosion and electrolysis

Sizes:

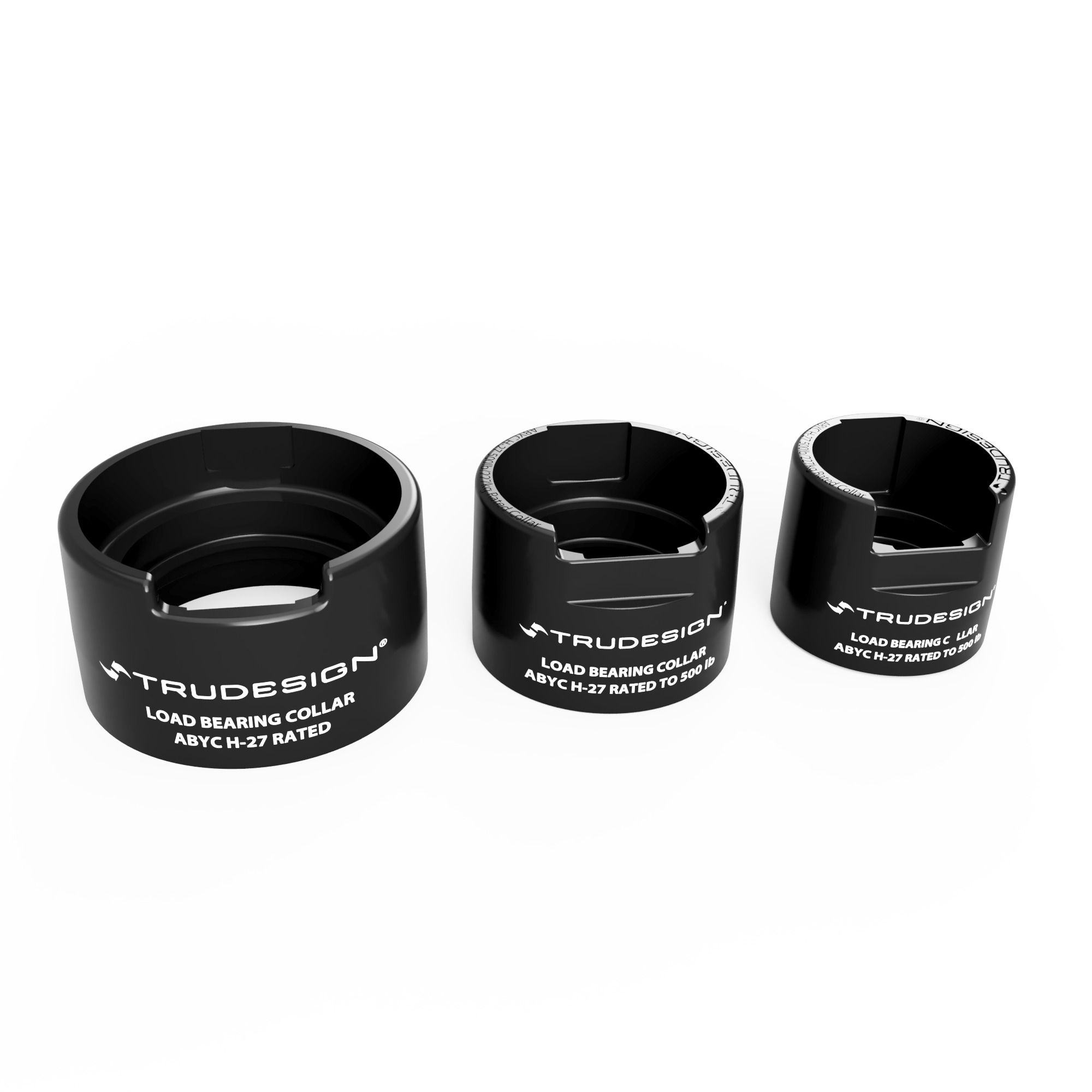

Load Bearing Collar ABYC H-27 Rated – Small (for ½”, ¾” & 1″ skin fittings)
