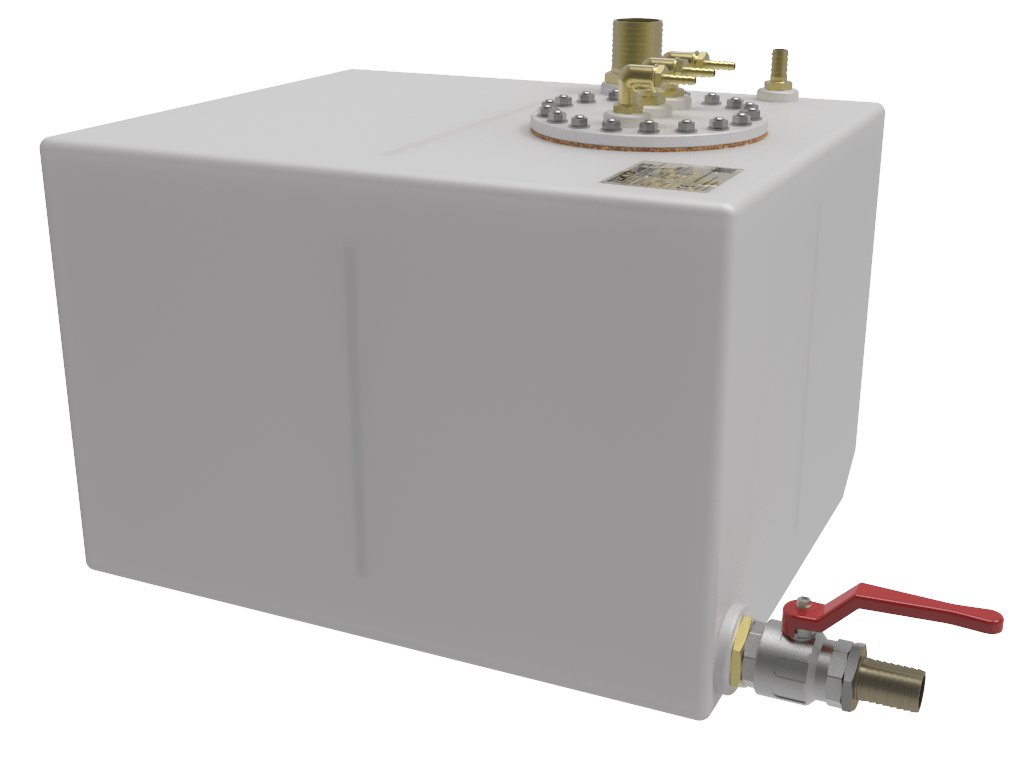

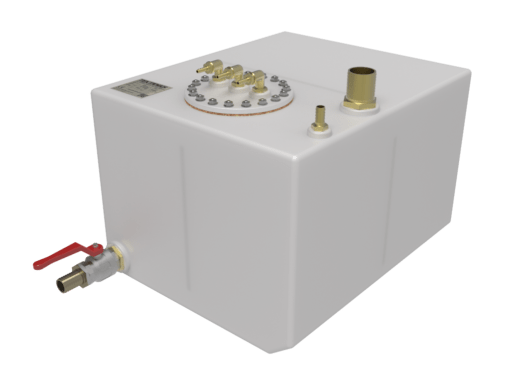

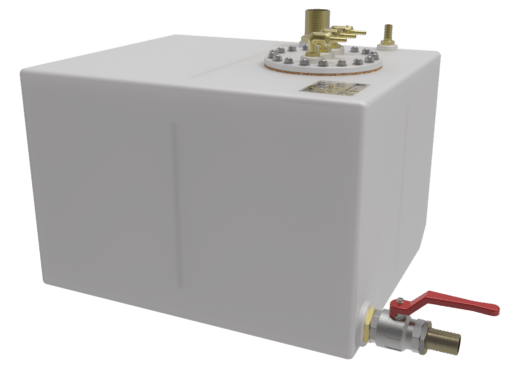

Winga 30 Port Diesel Tank
Replacement Port Port Diesel Plastic Tank for Winga 30 Motor Boats.
Manufactured from 10mm thick High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Straight Brass Hosetail
1 x 1 1/2″ BSP – 38mm Straight Brass Valved Hosetail
1 x 5/8″ BSP – 16mm Straight Brass Hosetail
2 x 5/16″ BSP- 8mm Elbow Brass Hosetail
1 x 1/4″ BSP- 6mm Elbow Brass Hosetail
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)
Capacity: 103 litres
Position in Boat: Port Midship
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
